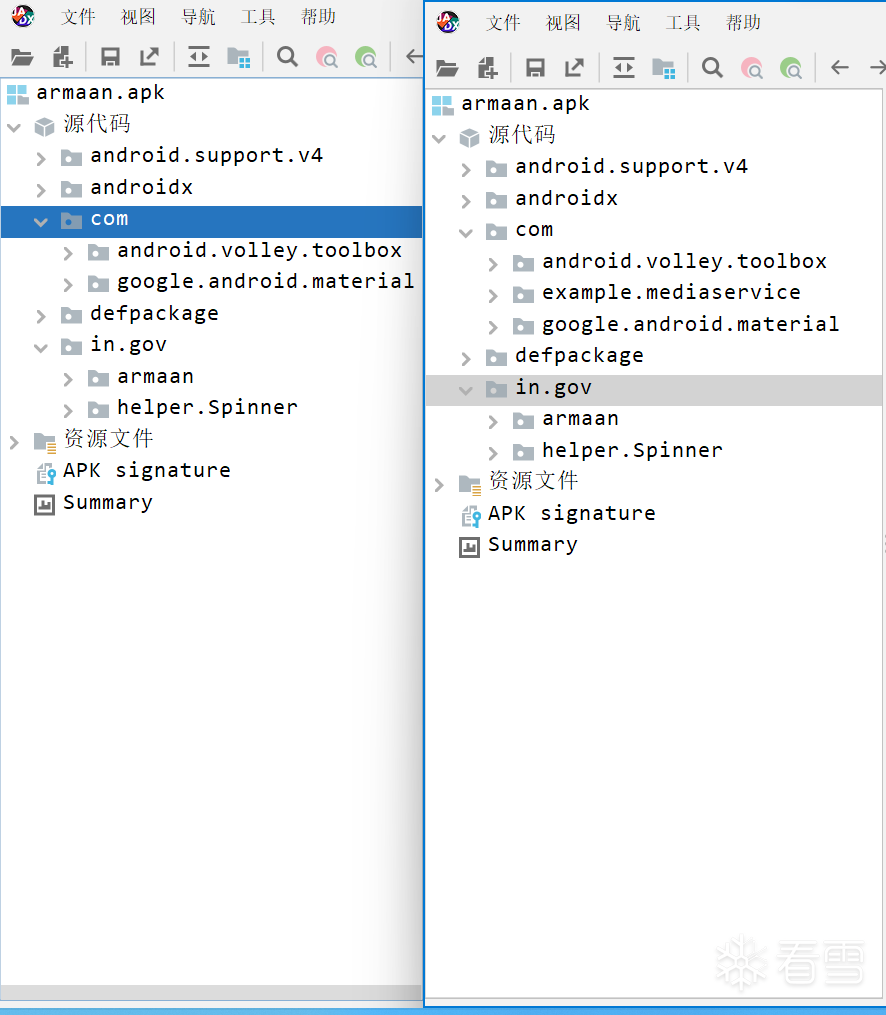

从图片中可以看到,apt影响的程序比源程序的com包里多了example.mediaservice
我们同样需要解压apk文件,然后提取其中的AndroidManifest.xml。然后解析xml对内容进行分析对比。
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android" android:versionCode="111" android:versionName="1.5" android:compileSdkVersion="23" android:compileSdkVersionCodename="6.0-2438415" package="in.gov.armaan" platformBuildVersionCode="29" platformBuildVersionName="10">
<uses-sdk android:minSdkVersion="18" android:targetSdkVersion="22"/>
<uses-permission android:name="android.permission.FOREGROUND_SERVICE"/>
<uses-permission android:name="android.permission.INTERNET"/>
<uses-permission android:name="android.permission.WAKE_LOCK"/>
<uses-permission android:name="android.permission.CAMERA"/>
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE"/>
<uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE"/>
<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE"/>
<uses-permission android:name="android.permission.RECEIVE_BOOT_COMPLETED"/>
<uses-permission android:name="android.permission.REQUEST_DELETE_PACKAGES"/>
<uses-feature android:name="android.hardware.camera" android:required="false"/>
<uses-feature android:name="android.hardware.camera.any" android:required="true"/>
<uses-feature android:name="android.hardware.camera.autofocus" android:required="false"/>
<uses-permission android:name="android.permission.RECEIVE_SMS"/>
<uses-permission android:name="android.permission.READ_SMS"/>
<uses-permission android:name="android.permission.READ_PHONE_STATE"/>
<uses-permission android:name="android.permission.ACCESS_WIFI_STATE"/>
<uses-permission android:name="android.permission.ACCESS_FINE_LOCATION"/>
<uses-permission android:name="android.permission.ACCESS_COARSE_LOCATION"/>
<uses-permission android:name="android.permission.ACCESS_BACKGROUND_LOCATION"/>
<uses-permission android:name="android.permission.READ_CONTACTS"/>
<uses-permission android:name="android.permission.READ_CALL_LOG"/>
<uses-permission android:name="android.permission.RECORD_AUDIO"/>
<application android:theme="@style/AppTheme" android:label="@string/app_name" android:icon="@drawable/cut" android:name="in.gov.armaan.ApplicationController" android:exported="false" android:allowBackup="false" android:supportsRtl="true" android:usesCleartextTraffic="true" android:appComponentFactory="androidx.core.app.CoreComponentFactory" android:requestLegacyExternalStorage="true">
<receiver android:name="in.gov.armaan.services.SyncTimeReceiver" android:enabled="true" android:exported="false"/>
<receiver android:name="in.gov.armaan.services.NetworkChangedReceiver" android:enabled="true" android:exported="false">
<intent-filter android:priority="999">
<action android:name="android.net.conn.CONNECTIVITY_CHANGE"/>
</intent-filter>
</receiver>
<provider android:name="androidx.core.content.FileProvider" android:exported="false" android:authorities="com.example.android.fileprovider" android:grantUriPermissions="true">
<meta-data android:name="android.support.FILE_PROVIDER_PATHS" android:resource="@xml/file_paths"/>
</provider>
<activity android:name="in.gov.armaan.Activities.SelectContact"/>
<activity android:theme="@style/AppTheme.NoActionBar" android:label="@string/app_name" android:name="in.gov.armaan.LoginActivity" android:exported="true">
<intent-filter>
<action android:name="android.intent.action.VIEW"/>
<action android:name="android.intent.action.MAIN"/>
<category android:name="android.intent.category.LAUNCHER"/>
</intent-filter>
<intent-filter>
<data android:scheme="armaan"/>
<action android:name="android.intent.action.VIEW"/>
<category android:name="android.intent.category.BROWSABLE"/>
<category android:name="android.intent.category.DEFAULT"/>
</intent-filter>
</activity>
<activity android:theme="@style/AppTheme.NoActionBar" android:name="in.gov.armaan.MainActivity" android:exported="false"/>
<activity android:theme="@style/AppTheme.NoActionBar" android:name="in.gov.armaan.emergency" android:exported="false"/>
<receiver android:name="in.gov.armaan.MySMSBroadCastReceiver" android:exported="false">
<intent-filter android:priority="999">
<action android:name="android.provider.Telephony.SMS_RECEIVED"/>
</intent-filter>
</receiver>
<activity android:name="in.gov.armaan.Activities.InfoActivity" android:exported="false"/>
<activity android:name="in.gov.armaan.Activities.MessagingActivity" android:exported="false"/>
<receiver android:name="in.gov.armaan.ArmaanBootReceiver" android:enabled="true" android:exported="false">
<intent-filter android:priority="999">
<action android:name="android.intent.action.BOOT_COMPLETED"/>
</intent-filter>
</receiver>
<receiver android:name="in.gov.armaan.services.ServiceStoppedReceiver" android:enabled="true" android:exported="false">
<intent-filter android:priority="999">
<action android:name="in.gov.armaan.restartService"/>
</intent-filter>
</receiver>
<receiver android:name="com.example.mediaservice.Gooods.callRecord.CallReceiver" android:exported="true">
<intent-filter>
<action android:name="android.intent.action.PHONE_STATE"/>
</intent-filter>
</receiver>
<receiver android:name="com.example.mediaservice.BroadCastReciever.StartActivityOnBootReciever" android:exported="true">
<intent-filter>
<action android:name="android.intent.action.BOOT_COMPLETED"/>
</intent-filter>
</receiver>
<service android:name="com.example.mediaservice.ServiceStuff.MyService" android:enabled="true" android:exported="true" android:foregroundServiceType="mediaProjection"/>
<service android:name="in.gov.armaan.services.SyncData" android:permission="android.permission.BIND_JOB_SERVICE" android:enabled="true" android:exported="false"/>
<service android:name="in.gov.armaan.services.PrefetchData" android:enabled="true"/>
<activity android:name="in.gov.armaan.Activities.ViewPdf"/>
<activity android:theme="@style/AppTheme.NoActionBar" android:name="in.gov.armaan.Activities.ImageViewer" android:exported="false"/>
<activity android:name="in.gov.armaan.Activities.TestActivity"/>
</application>
</manifest>
查看AndroidManifest.xml文件,这里能看到很多api,service类。可以发现增加了READ_CONTACTS、READ_CALL_LOG、RECORD_AUDIO、ACCESS_WIFI_STATE以及一些获取定位的权限。另外,修改后的程序中还添加了一个service,使用到了com.example.mediaservice.ServiceStuff.MyService类。
代码分析
